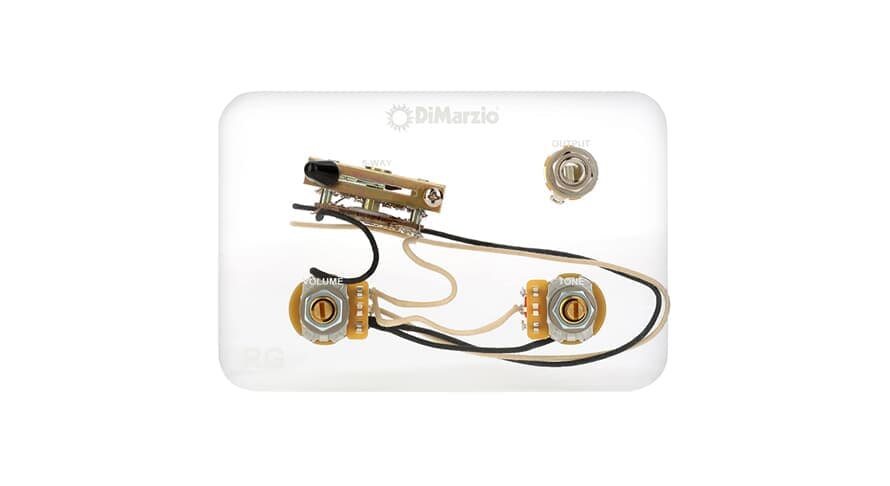

HH Wiring Harness with Five-Way Super Switch

The heart of this dual humbucker drop-in prewired harness is our custom designed 500K pot. First introduced over 45 years ago, we used a 10-step rotary switch to create a taper that works with DiMarzio’s high impedance pickups. It’s neither a linear nor audio taper pot -- it's DiMarzio's custom taper. To further increase reliability, we make the center shaft and threaded parts from solid machined brass instead of cheap castings.

This kit also features a custom Oak Grigsby 5-way Super Switch that allows for any pickup wiring configuration, both black and white switch tips, and a Switchcraft output jack.

DiMarzio wiring harnesses are all hand assembled and tested in the USA. We use the best sound-tested parts available from Switchcraft®, Sprague®, and CTS®, and we include vintage-style cloth wire.

Set up for the following switching configuration:

1.     Bridge
2.     Bridge & Neck (Inside Coils)
3.     Bridge & Neck
4.     Bridge & Neck (Outside Coils)
5.     Neck

Component List:

• 2x DiMarzio Custom Taper Potentiometers – 500K
• Sprague Orange Drop Capacitor - .022uf, 100v
• Gavitt Vintage Hookup Wire – 22 Gauge
• Custom Oak-Grigsby Five-Way Super Switch
• Switchcraft Output Jack
